| Long haul Multi Axle vehicles |
 |

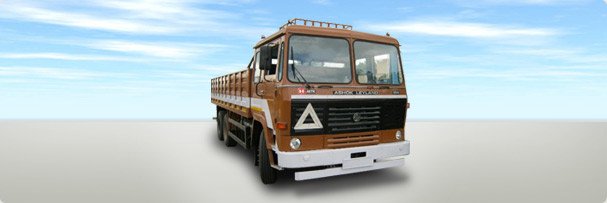

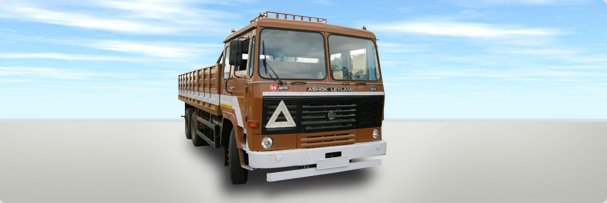

2516 IL
 |
| Applications: |
Market load, construction, bulkers, minerals, tankers |
| Engine: |
H Series 6 ETI3KI Turbocharged intercooled with inline FIP |
| Power: |
160 hp @ 2400 rpm |
| Torque: |
550 Nm @ 1500 - 1700 rpm |
| Clutch: |
Single plate dry plate, with clutch booster, 380 mm facing dia |
| Transmission: |
ZF S636 FGR 8.97:1 |
| Suspension: |
Semi elliptical laminated multileaf |
| Cabin: |
Factory built G45 Cowl |
| Tyres: |
10.00 x 20 - 16 PR Nylon - ply (radial ply optional) |
| Max Speed: |
79 kmph |
| Gradeability: |
18.54% |
| GVW: |
25000 kgs |
| Wheelbase: |
4902 mm |
| Loading span: |
23.5 ft |
| Option: |
Twin speed rear axle variant available |
|
 |
2516 IL
|
| Applications: |
Market load, construction, bulkers, minerals, tankers |
| Engine: |
H Series 6 ETI3KI Turbocharged intercooled with inline FIP |
| Power: |
160 hp @ 2400 rpm |
| Torque: |
550 Nm @ 1500 - 1700 rpm |
| Clutch: |
Single plate dry plate, with clutch booster, 380 mm facing dia |
| Transmission: |
ZF S636 FGR 8.97:1 |
| Suspension: |
Semi elliptical laminated multileaf |
| Rear Suspension: |
Air suspension |
| Cabin: |
Factory built G45 Cowl |
| Tyre: |
10.00 x 20 - 16 PR Nylon - ply (radial ply optional) |
| Max speed: |
79 kmph |
| Gradeability: |
18.54% |
| GVW: |
25000 kgs |
| Wheelbase: |
4902 mm |
| Loading span: |
23.5 ft |
| Option: |
Twin speed rear axle variant available |
|
 |

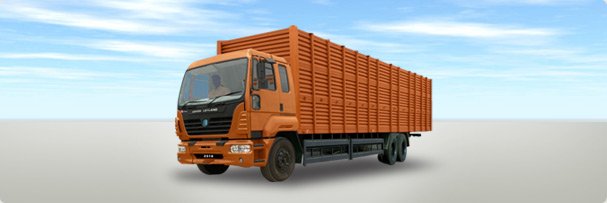

2516XL
|
| Applications: |
Parcel & logistics, auto carriers |
| Engine: |
H 6ETI3K |
| Power: |
160hp @ 2400 rpm |
| Torque: |
550 Nm @ 1500 - 1700 rpm |
| Clutch: |
15" facing dia clutch with superior lining material & booster |
| Transmission: |
ZF S6 36 with FGR 8.91:1 |
| Suspension: |
Semi elliptical laminated multileaf |
| Cabin: |
Factory built G45 Cowl |
| Tyre: |
10.00 x 20 - 16 PR Nylon ply - radial ply optional |
| Max speed: |
79 Kmph |
| Gradeability: |
18.54% |
| GVW: |
25000 kgs |
| Wheelbase: |
6200 mm |
| Loading span: |
32 ft |
| Option: |
Twin speed rear axle variant available |
|
 |

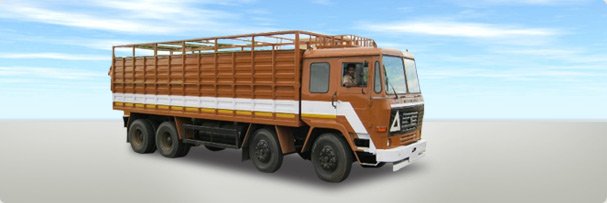

3116 IL
|
| Applications: |
Market load, cement,tankers, parcel & white goods |
| Engine: |
H Series 6ETI3K turbocharged intercooled with inline FIP |
| Power: |
160 hp @ 2400 rpm |
| Torque: |
550 Nm @ 1500 - 1700 rpm |
| Clutch: |
Single plate dry plate, with clutch booster, 380 mm facing dia |
| Transmission: |
ZF 6S850 FGR 8.51:1 |
| Suspension: |
Semi elliptical laminated multileaf |
| Cabin: |
Factory built G45 Cowl |
| Tyre: |
10.00 x 20 - 16 PR Nylon - ply (radial ply optional) |
| Max speed: |
74.2 kmph |
| Gradeability: |
15.34% |
| GVW: |
31000 kgs |
| Wheelbase: |
5200 mm |
| Loading span: |
24.5 ft |
| Option: |
Twin speed rear axle variant available |
|
| 2516 il |
2516 il/1 |
2516XL |
3116 il |
 |
3116 XL
|
| Applications: |
Parcel & white goods, tankers |
| Engine: |
H Series 6ETI3K turbocharged intercooled with Inline FIP |
| Power: |
160 hp @ 2400 rpm |
| Torque: |
550 Nm @ 1500 - 1700 rpm |
| Clutch: |
Single plate dry plate, with clutch booster, 380 mm facing dia |
| Transmission: |
ZF 6S850 FGR 8.51:1 |
| Suspension: |
Semi elliptical laminated multileaf |
| Cabin: |
Factory built G45 Cowl |
| Tyres: |
10.00 x 20 - 16 PR Nylon - ply (radial ply optional) |
| Max Speed: |
74.2 kmph |
| Gradeability: |
15.34% |
| GVW: |
31000 kgs |
| Wheelbase: |
5700 mm |
| Loading span: |
30.5 ft |
|
 |

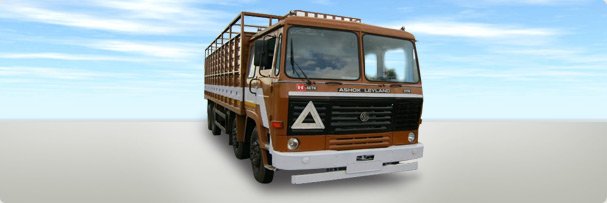

3118IL
|
| Applications: |
Market load, cement,tankers, parcel & white goods |
| Engine: |
HA6ETI3U |
| Power: |
180 hp @ 2400 rpm |
| Torque: |
660 Nm @ 1500 - 1700 rpm |
| Clutch: |
15" facing dia clutch with superior lining material |
| Transmission: |
ZF 6 Speed with 8.51 FGR |
| Suspension: |
Semi eliptic multileaf |
| Cabin: |
Factory built G45 Cowl |
| Tyres: |
10.00 x 20 - 16 PR Nylon ply - radial ply optional |
| Max Speed: |
78 kmph |
| Gradeability: |
18.68% |
| GVW: |
31000 kgs |
| Wheelbase: |
5200 mm |
| Loading span: |
24.5ft |
| Option: |
Twin speed rear axle variant available |
|
|
3118il XL
|
| Applications: |
Parcel & logistics, auto carriers |
| Engine: |
HA6ETI3U |
| Power: |
180 hp @ 2400 rpm |
| Torque: |
660 Nm @ 1500 - 1700 rpm |
| Clutch: |
15" facing dia clutch with superior lining material |
| Transmission: |
ZF 6 Speed with 8.51 FGR |
| Suspension: |
Semi eliptic multileaf |
| Cabin: |
Factory built G45 Cowl |
| Tyres: |
10.00 x 20 - 16 PR Nylon ply - radial ply optional |
| Max Speed: |
78 kmph |
| Gradeability: |
18.68% |
| GVW: |
31000 kgs |
| Wheelbase: |
5700 mm |
| Loading span: |
30.5 ft |
|
 |

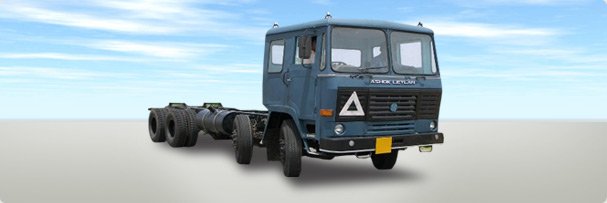

3123 XL
|
| Applications: |
Voluminous market load, parcel & white goods |
| Engine: |
HA57L165 |
| Power: |
225 hp @ 2500 rpm |
| Torque: |
800 nm @ 1400-1900 rpm |
| Clutch: |
15" facing dia clutch with superior lining material & booster |
| Transmission: |
ZF 9Speed with 8.83FGR |
| Suspension: |
Semi elliptical multileaf |
| Cabin: |
All steel factory built G45 cowl |
| Tyres: |
10.00 x 20 - 16 PR - radial option available |
| Max Speed: |
83 kmph |
| Gradeability: |
23% |
| GVW: |
31000 kgs |
| Wheelbase: |
5700 mm |
| Loading span: |
30.5 ft |
|
| 3116 XL |
3118il |
3118il XL |
3123 XL |
 |

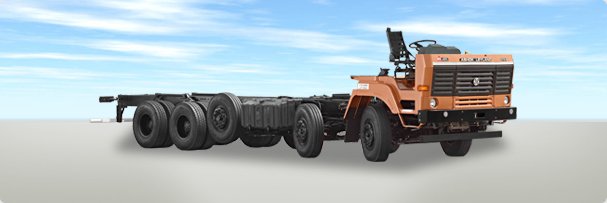

3718 IL
|
| Applications: |
Market load, Cement , Ores & Minerals ,Steel |
| Engine: |
HA6ETI3U |
| Power: |
180 hp @ 2400 rpm |
| Torque: |
660 Nm @ 1500 - 1700 rpm |
| Clutch: |
380 mm dia , Ceramic clutch disc |
| Transmission: |
9 speed synchromesh FGR 8.83:1 |
| Suspension: |
Uprated Semi elliptic multileaf |
| Tyres: |
11R x 20 Radial tyres |
| Max Speed: |
67 kmph |
| Gradeability: |
15. 3% |
| GVW: |
37T |
| Wheelbase: |
6600 mm |
|
|
|
|
| 3718 il |
|
|
|
| Tractors |
 |

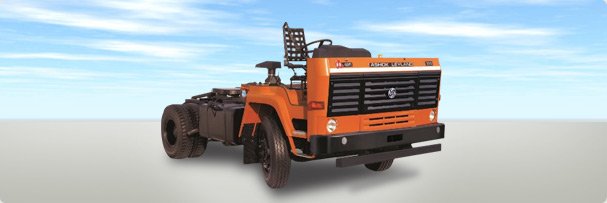

3518IL TRACTOR
|
| Applications: |
Container, market load, car carriers |
| Engine: |
HA6ETI3U |
| Power: |
180 hp @ 2400 rpm |
| Torque: |
660 Nm @ 1500 - 1700 rpm |
| Clutch: |
380 mm dia disc with organic lining actuated with clutch boosters |
| Transmission: |
6 speed synchromesh FGR 8.97:1 |
| Suspension: |
Semi elliptic multileaf |
| Tyres: |
10.00 x 20 - 16 PR Nylon; Radial tyres optional |
| Max Speed: |
75kmph |
| Gradeability: |
17.3% |
| GVW: |
35200 kgs (with double axle trailer) |
| Wheelbase: |
3300 mm |
|
 |

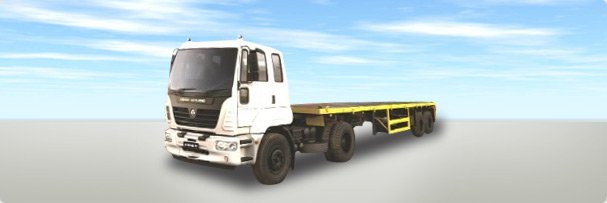

U 3518IL TRACTOR
|
| Applications: |
Container, market load, car carriers |
| Engine: |
HA6ETI3U |
| Power: |
180 hp @ 2400 rpm |
| Torque: |
660 Nm @ 1500 - 1700 rpm |
| Clutch: |
380 mm dia disc with organic lining actuated with clutch boosters |
| Transmission: |
6 speed synchromesh FGR 8.97:1 |
| Suspension: |
Front : Parabolic Rear : semi eliptic multileaf |
| Cabin: |
Factory built G91 sleeper cab |
| Tyres: |
10.00 x 20 - 16 PR nylon; radial tyres optional |
| Max Speed: |
75kmph |
| Gradeability: |
17.3% |
| GVW: |
35200 kgs (with double axle trailer) |
| Wheelbase: |
3300 mm |
|
|
4019IL TRACTOR
|
| Applications: |
Container, market load, Steel |
| Engine: |
HA6ETI3U |
| Power: |
180 hp @ 2400 rpm |
| Torque: |
660 Nm @ 1500 - 1700 rpm |
| Clutch: |
380 mm dia disc with organic lining actuated with clutch boosters |
| Transmission: |
6 speed synchromesh FGR 8.97:1 |
| Suspension: |
Semi elliptic multileaf |
| Tyres: |
10.00 x 20 - 16 PR Nylon; Radial tyres optional |
| Max Speed: |
70 kmph |
| Gradeability: |
16.73% |
| GVW: |
40200 kgs (with triple axle trailer) |
| Wheelbase: |
3300 mm |
|
 |

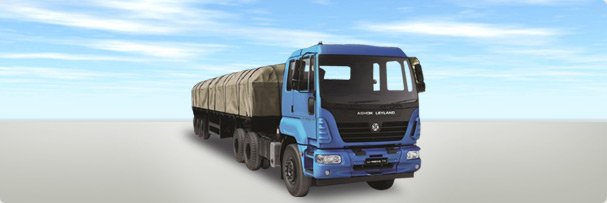

U-4923 TT
 |
| Applications: |
Cement, Steel, ODC |
| Engine: |
H Series CRS BS III |
| Power: |
225 hp @ 2500 rpm |
| Torque: |
800 nm @ 1400-1900 rpm |
| Clutch: |
380 mm dia disc with organic lining actuated with clutch boosters |
| Transmission: |
9 speed synchromesh GB (ZF9S1110); First Gear Ratio 8.83:1, Crawler Gear Ratio 12.73:1 |
| Suspension: |
Front : Parabolic suspension Rear : Semi elliptic multileaf; bogie option |
| Cabin: |
Factory built G91 sleeper cab |
| Tyres: |
11.00 x 20 - 16 PR cross ply; radial tyres optional |
| Max Speed: |
80 kmph |
| Gradeability: |
21% |
| GVW: |
49000 kgs (with tri-axle trailer)) |
| Wheelbase: |
3900 mm |
|
| 3518il |
U 3518il |
4019il |
U-4923 TT |
 |
U 4019IL TRACTOR
|
| Applications: |
Container, market load, Steel |
| Engine: |
HA6ETI3U |
| Power: |
180 hp @ 2400 rpm |
| Torque: |
660 Nm @ 1500 - 1700 rpm |
| Clutch: |
380 mm dia disc with organic lining actuated with clutch boosters |
| Transmission: |
6 speed synchromesh FGR 8.97:1 |
| Suspension: |
Front : Parabolic Rear : semi eliptic multileaf |
| Cabin: |
Factory built G91 sleeper cab |
| Tyres: |
10.00 x 20 - 16 PR nylon; radial tyres optional |
| Max Speed: |
70kmph |
| Gradeability: |
16.73% |
| GVW: |
40200 kgs (with triple axle trailer) |
| Wheelbase: |
3300 mm |
|
 |

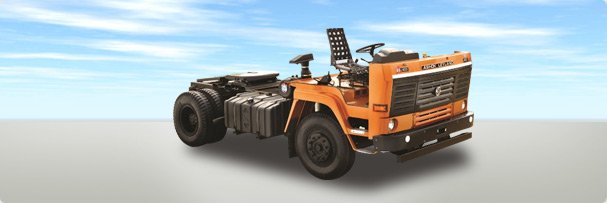

4023 XP
|
| Applications: |
Market load, containers, steel, tip trailer |
| Engine: |
H Series CRS BS III |
| Power: |
225 hp @ 2500 rpm |
| Torque: |
800 nm @ 1400 - 1900 rpm |
| Clutch: |
380 mm dia disc with organic lining actuated with clutch boosters |
| Transmission: |
6 speed synchromesh GB (6S850); First Gear Ratio 6.72:1 |
| Suspension: |
Semi elliptic multileaf |
| Tyres: |
11.00 x 20 - 16 PR cross ply; Radial tyres optional |
| Max Speed: |
91 kmph |
| Gradeability: |
14.70% |
| GVW: |
40200 kgs (with tri axle trailer) |
| Wheelbase: |
3300 mm |
| FES: |
G45 cowl |
|
|

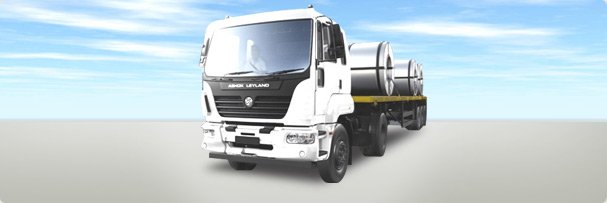

U-4023 TT
|
| Applications: |
Market load, containers, steel, tip trailer |
| Engine: |
H series CRS BS III |
| Power: |
225 hp @ 2500 rpm |
| Torque: |
800 nm @ 1400-1900 rpm |
| Clutch: |
380 mm dia disc with organic lining actuated with clutch boosters |
| Transmission: |
6 speed synchromesh GB (6S580); First Gear Ratio 6.72:1 |
| Suspension: |
Front : Parabolic suspension Rear : Semi elliptic multileaf |
| Cabin: |
Factory Built G91 sleeper cab |
| Tyres: |
11.00 x 20 - 16 PR cross ply; radial tyres optional |
| Max Speed: |
91 kmph |
| Gradeability: |
14.70% |
| GVW: |
40200 kgs (with tri axle trailer) |
| Wheelbase: |
3300 mm |
|
|
4923
|
| Applications: |
Cement, steel, ODC |
| Engine: |
H Series CRS BS III |
| Power: |
225 hp @ 2500 rpm |
| Torque: |
800 nm @ 1400 - 1900 rpm |
| Clutch: |
380 mm dia disc with organic lining actuated with clutch boosters |
| Transmission: |
9 speed Synchromesh GB (ZF9S1110); First Gear Ratio 8.83:1; Crawler Gear Ratio - 12.73:1 |
| Suspension: |
Semi elliptic multileaf |
| Cabin: |
Factory built G91 sleeper cab |
| Tyres: |
11.00 x 20 - 16 PR cross ply; radial tyres optional |
| Max Speed: |
80 kmph |
| Gradeability: |
21% |
| GVW: |
49000 kgs (with tri-axle trailer) |
| Wheelbase: |
3810 mm |
| FES: |
G45 cowl |
|
| U 4019il tractor |
4023 XP |
U-4023 TT |
4923 |
| Mining and Construction |
| 4X2 - Trucks |
 |

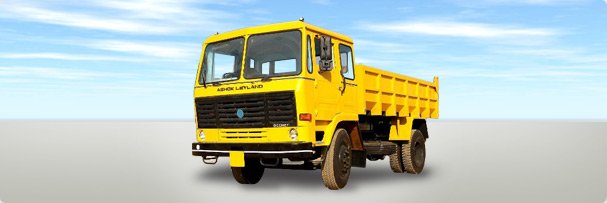

1616 / 1616 XL
|
| Applications: |
Construction, roadwork, coal |
| Engine: |
H Series HA6ETI3K BS3 turbocharged intercooled |
| Power: |
160 hp @ 2400 rpm |
| Torque: |
550 nm @ 1500 -1700 rpm |
| Clutch: |
Axial type 352 mm dia with organic lining and mechanical actuation |
| Transmission: |
6 speed OD GB - First Gear Ratio (FGR) - 8.28:1 |
| Suspension: |
Semi Elliptical multileaf |
| Cabin: |
G45 FES and cabin |
| Tyres: |
10.00 x 20 - 16 PR nylon - ply |
| Max Speed: |
96 kmph |
| Gradeability: |
27% |
| GVW: |
16200 kgs |
| Variants: |
1616,1616 XL |
| Wheelbase: |
2920,3607 |
| Body Capacity: |
4.5 cum Box UBT & 6.5 cum box UBT&FET
6 cum box UBT , 8.5 cum box UBT & FET, 10.5 cum Box FET, 8.5 cum scow FET and 7.5 cum rock UBT |
|
 |

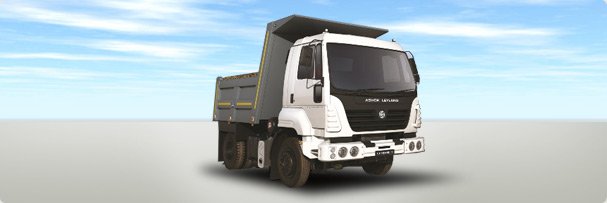

U-1616 T
|
| Applications: |
Construction, Roadwork, Coal |
| Engine: |
H Series HA6ETI3K BS3 Turbocharged intercooled |
| Power: |
160 hp @ 2400 rpm |
| Torque: |
550 nm @ 1500-1700 rpm |
| Clutch: |
Axial type 352 mm dia organic lining and hydrualic actuation |
| Transmission: |
6 Speed OD GB - First Gear Ratio (FGR) - 8.28:1 |
| Suspension: |
Semi Elliptical multileaf |
| Cabin: |
Factory built G91 day cab with sleeping provision |
| Tyres: |
10.00 x 20 - 16 PR Nylon ply |
| Max Speed: |
96 kmph |
| Gradeability: |
27% |
| GVW: |
16200 kgs |
| Wheelbase: |
3000 mm,3600 mm |
| Body Capacity: |
6.5 cum box / 8.5 cum box & 10.5 cum box |
|
 |

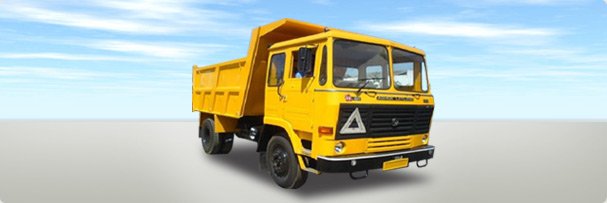

1618 XP
|
| Applications: |
Irrigation, construction and quarry |
| Engine: |
H series HA57L135 - BS3 turbocharged intercooled |
| Power: |
180 hp @ 2400 rpm |
| Torque: |
660 nm @ 1400 - 1800 rpm |
| Clutch: |
Axial type 381 mm dia with organic lining and actuated by clutch booster |
| Transmission: |
6 speed 6S850 GB - First Gear Ratio (FGR) - 8.51:1 |
| Suspension: |
Semi Elliptical multileaf |
| Cabin: |
G45 FES and cabin |
| Tyres: |
10.00 x 20 - 16 PR nylon ply |
| Max Speed: |
77 kmph |
| Gradeability: |
36% |
| GVW: |
16200 kgs |
| Wheelbase: |
3607 mm |
| Body Capacity: |
8.5 cum box, 10.5 cum box, 8.5 cum scow |
|
 |

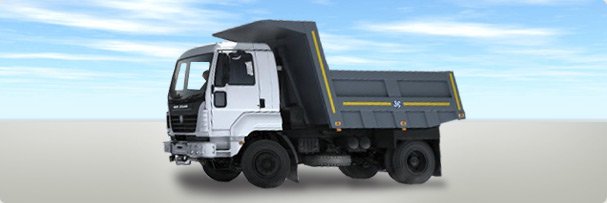

U-1618 T
|
| Applications: |
Irrigation, Construction and Quarry |
| Engine: |
H Series HA57L135 - BS 3 turbocharged intercooled |
| Power: |
180 hp @ 2400 rpm |
| Torque: |
660 nm @ 1400 - 1800 rpm |
| Clutch: |
Axial type 381 mm dia with organic lining and actuated by clutch booster |
| Transmission: |
6 speed 6S850 GB - First Gear Ratio (FGR) - 8.5:1 |
| Suspension: |
Semi Elliptical multileaf |
| Cabin: |
Factory built G91 day cab with sleeping provision |
| Tyres: |
10.00 x 20 - 16 pr Nylon ply |
| Max Speed: |
77 kmph |
| Gradeability: |
36% |
| GVW: |
16200 kgs |
| Wheelbase: |
3600 mm |
| Body Capacity: |
8.5 box type & 8.5 scow type |
|
| 1616 / 1616 XL |
U-1616 T |
1618 XP |
U-1618 T |
| Multi-Axle Tipper Trucks |
|
2516T IL
|
| Applications: |
Construction, roadwork & earth work |
| Engine: |
H series HA6ETI3K - BS3 turbocharged intercooled |
| Power: |
160 hp @ 2400 rpm |
| Torque: |
550 nm @ 1500 - 1700 rpm |
| Clutch: |
Axial type 381 mm dia with organic lining and actuated by clutch booster |
| Transmission: |
6 speed GB - First Gear Ratio (FGR) - 8.51:1 |
| Suspension: |
Semi Elliptical multileaf |
| Cabin: |
G45 FES and cabin |
| Tyres: |
10.00 x 20 - 16 PR nylon ply |
| Max Speed: |
70 kmph |
| Gradeability: |
20% |
| GVW: |
25000 kgs |
| Wheelbase: |
3810 mm |
| Body Capacity: |
14 cum box, 16 cum box & 14 cum rock |
|
 |

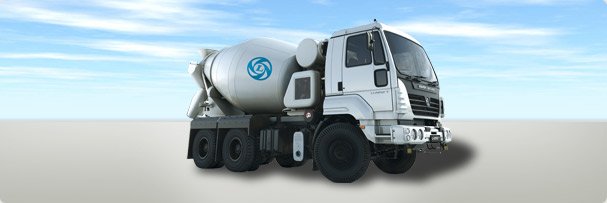

2516H3/4C RMC
|
| Applications: |
RMC - Ready mix concrete |
| Engine: |
H series 6DTI (BSIII) |
| Power: |
165 hp @ 2400 rpm |
| Torque: |
540 Nm @ 1500 rpm |
| Clutch: |
15" facing dia clutch with superior lining material |
| Transmission: |
ZF 6 Speed with 8.97 FGR |
| Suspension: |
Semi Elliptical multileaf |
| Cabin: |
Tiltable cargo day cab |
| Tyres: |
10.00 x 20 - 16 PR |
| Max Speed: |
75 kmph |
| Gradeability: |
19.14 |
| GVW: |
25000 kgs |
| Wheelbase: |
3810 mm |
|
|
2518IL LWB RMC
|
| Applications: |
RMC - Ready mix concrete |
| Engine: |
H series 6DTI (BSIII) |
| Power: |
165 hp @ 2400 rpm |
| Torque: |
540 Nm @ 1500 rpm |
| Clutch: |
15" facing dia clutch with superior lining material |
| Transmission: |
ZF 6 Speed with 8.97 FGR |
| Suspension: |
Semi Elliptical multileaf |
| Cabin: |
Tiltable cargo day cab |
| Tyres: |
10.00 x 20 - 16 PR |
| Max Speed: |
75 kmph |
| Gradeability: |
19.14 |
| GVW: |
25000 kgs |
| Wheelbase: |
3810 mm |
|
 |
U-2518il T Tipper
|
| Applications: |
Construction & Road work |
| Engine: |
H Series HA6ETI3U – BS3 Turbocharged Intercooled |
| Power: |
180 hp @ 2400 rpm |
| Torque: |
660 Nm @ 1500 - 1700 rpm |
| Clutch: |
Axial type 381mm dia with organic lining and actuated by clutch booster |
| Transmission: |
6 speed GB - First Gear Ratio (FGR) - 8.5:1 |
| Suspension: |
Front & Rear : Semi eliptic multileaf |
| Cabin: |
Factory built G91 sleeper cab |
| Tyres: |
10.00 x 20 - 16 PR nylon |
| Max Speed: |
71kmph |
| Gradeability: |
25% |
| GVW: |
25000 kgs |
| Wheelbase: |
3900 mm |
| Body Capacity: |
14 cum box & 14 cum scow |
|
| 2516T il |
2516H3/4C RMC |
2518il LWB RMC |
U-2518il T Tipper |
|
U-2518IL T HD
|
| Applications: |
Stone & Marble Quarry, Lime stone, Iron & ores, Canal & Irrigation |
| Engine: |
H Series HA6ETI3U – BS3 Turbocharged Intercooled |
| Power: |
180 hp @ 2400 rpm |
| Torque: |
660 Nm @ 1500 - 1700 rpm |
| Clutch: |
Axial type 381mm dia with organic lining and actuated by clutch booster |
| Transmission: |
9 speed 9S1110 GB - FIrst Gear Ratio (FGR) - 8.83:1, Crawler Gear Ratio (CGR) - 12.73:1 |
| Suspension: |
Front: Semi eliptic multileaf, Rear : Bogie |
| Cabin: |
Factory built G91 sleeper cab |
| Tyres: |
10.00 x 20 - 16 PR nylon |
| Max Speed: |
67kmph |
| Gradeability: |
42% |
| GVW: |
25000 kgs |
| Wheelbase: |
3900 mm |
| Body Capacity: |
14 & 16 cum box & 14 cum Rock |
|
|

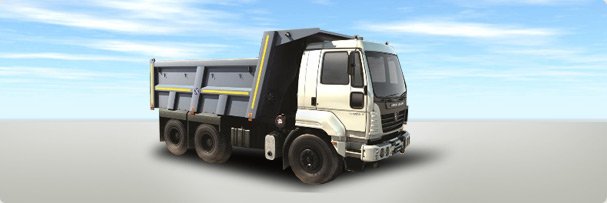

U-2518 T
|
| Applications: |
Construction, Roadwork, Earthwork & Light mining |
| Engine: |
H series HA57L135 - BS3 turbocharged intercooled |
| Power: |
180 hp @ 2400 rpm |
| Torque: |
660 nm @ 1400-1800 rpm |
| Clutch: |
Axial type 381 mm dia with organic lining and actuated by clutch booster |
| Transmission: |
6 speed GB - First Gear Ratio (FGR) - 8.5:1 |
| Suspension: |
Semi Elliptical multi leaf and bogie suspension in rear |
| Cabin: |
Factory built G91 day cab with sleeping provision |
| Tyres: |
10.00 x 20 - 16 PR nylon ply |
| Max Speed: |
74 kmph |
| Gradeability: |
25% |
| GVW: |
25000 kgs |
| Wheelbase: |
3900 mm/4600 mm |
| Body Capacity: |
14 cum box & 14 cum scow (3600 mm WB) ,
20 cum box (4600 mm WB) |
|
 |
2518IL LWB RMC
|
| Applications: |
Overburden, Ores Stone & marbel quarries |
| Engine: |
H Series HA57L165 CRS - BS3 turbocharged intercooled |
| Power: |
225 hp @ 2500 rpm |
| Torque: |
800 nm @ 1400 - 1900 rpm |
| Clutch: |
Axial type 381 mm dia with organic lining and actuated by clutch booster |
| Transmission: |
9 speed 9S1110 GB - FIrst Gear Ratio (FGR) - 8.83:1, Crawler Gear Ratio (CGR) - 12.73:1 |
| Suspension: |
Heavy duty bogie in rear |
| Cabin: |
Factory built G91 day cab with sleeping provision |
| Tyres: |
11.00 x 20 - 16 PR nylon : option of 11.00 x 20 - 18 PR with mine lug pattern |
| Max Speed: |
80 kmph |
| Gradeability: |
46% |
| GVW: |
25000 kgs |
| Wheelbase: |
3900 mm |
| Body Capacity: |
16 cum box,
14 cum rock & 14 cum rock with Hardox plates |
|
|
U-3123 T
|
| Applications: |
Voluminous material movement at ports & Surface transportation |
| Engine: |
H Series HA57L165 CRS - BS3 turbocharged intercooled |
| Power: |
225 hp @ 2500 rpm |
| Torque: |
800 nm @ 1400-1900 rpm |
| Clutch: |
Axial type 381 mm dia with organic lining and actuated by clutch booster |
| Transmission: |
9 speed GB - First Gear Ratio (FGR) - 8.83:1, Crawler Gear Ratio (CGR) - 12.73:1 |
| Suspension: |
Heavy duty bogie in rear |
| Cabin: |
Factory built G91 day cab with sleeping provision; a/c option |
| Tyres: |
11.00 x 20 - 16 PR nylon ply |
| Max Speed: |
82 kmph |
| Gradeability: |
33% |
| GVW: |
31000 kgs |
| Wheelbase: |
5250 mm |
| Body Capacity: |
19 cum box,
22 cum box |
|
| U-2518il T HD |
U-2518 T |

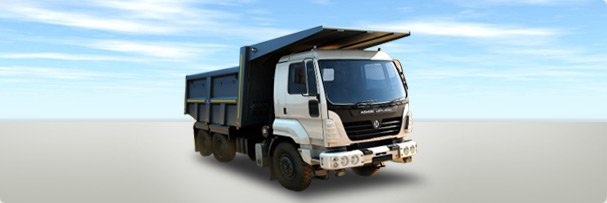

U-2523 T |
U-3123 T |
| Distribution trucks |
|
|
|
| 4X2 Haulage |
|
|
|
 |

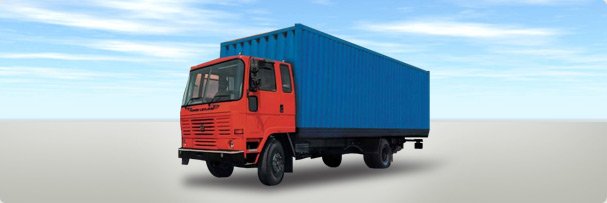

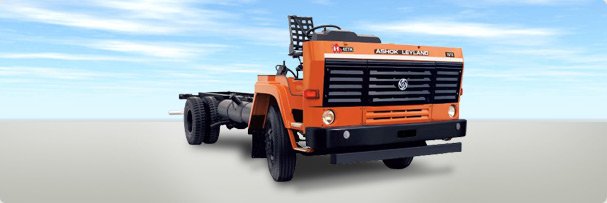

1616IL
|
| Applications: |
Market load, construction, parcel, tankers & 1616il /1 – exclusive drill rig vehicle available |
| Engine: |
H Series 6 ETI3K turbocharged intercooled with inline FIP |
| Power: |
160 hp @ 2400 rpm |
| Torque: |
550 nm @ 1500-1700 rpm |
| Clutch: |
Single plate dry plate, 14" dia 14.27 mm lining thick, axial clutch, F510 lining |
| Transmission: |
ZF S636 OD gearbox; First Gear Ratio (FGR) 8.28:1 |
| Suspension: |
Semi Elliptical multileaf |
| Cabin: |
Factory built G45 cowl |
| Tyres: |
10.00 x 20 - 16 PR nylon - ply (radial ply optional) |
| Max Speed: |
97 kmph |
| Gradeability: |
25.73% |
| GVW: |
16200 kgs |
| Variants: |
1616 il,
1616 il/1,
1616 il/2,
1616 il/3, |
Wheelbase: |
4330,
4700,
5334,
6250, |
| Loading span: |
18 ft,
20 ft,
24 ft,
32 ft, |
|
 |
1616 XL
|
| Applications: |
Parcel & white goods, market load |
| Engine: |
HA6DTI3N BS III |
| Power: |
168 hp @ 2400 rpm |
| Torque: |
540 nm @ 1600-2100 rpm |
| Clutch: |
14" facing dia clutch with superior lining material |
| Transmission: |
S6 36 Mark II OD with FGR 8.28:1 |
| Suspension: |
Semi Elliptical multileaf |
| Cabin: |
Factory built G45 cowl |
| Tyres: |
10.00 x 20 - 16 PR - radial option available |
| Max Speed: |
97 kmph |
| Gradeability: |
25.67% |
| GVW: |
16200 kgs |
| Variants: |
1616 XL/2 ,
1616 XL/3 |
| Wheelbase: |
5334 ,
6250 |
| Loading span: |
24 ft ,
32 ft |
|
 |

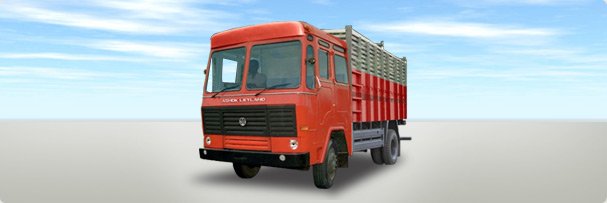

1616 XP
|
| Applications: |
Market load, tankers |
| Engine: |
HA6DTI3N BS III |
| Power: |
168 hp @ 2400 rpm |
| Torque: |
540 nm @ 1600-2100 rpm |
| Clutch: |
14" facing dia clutch with superior lining material |
| Transmission: |
S6 36 Mark II OD with FGR 8.28:1 |
| Suspension: |
Semi Elliptical multileaf |
| Cabin: |
Factory built G45 Cowl |
| Tyres: |
10.00 x 20 - 16 PR - radial option available |
| Max Speed: |
97 kmph |
| Gradeability: |
25.67% |
| GVW: |
16200 kgs |
| Variants: |
1616 XP ,
1616 XP/1 |
| Wheelbase: |
4330 ,
4700 |
| Body Capacity: |
18 ft ,
20 ft |
|
| 1616il |
1616 XL |
1616 XP |
|
| ICV |
 |

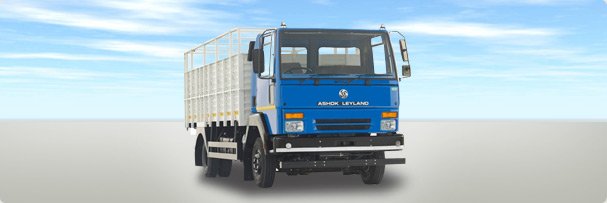

ECOMET 1012 STRONG
|
| Applications: |
Market load, construction, intracity distribution |
| Engine: |
HA4CTI 3N BS III with ECU |
| Power: |
120 hp @ 2400 rpm |
| Torque: |
392 nm @ 1600 rpm |
| Clutch: |
Single plate dry plate, 330 mm facing dia axial clutch, FS10MCC lining |
| Transmission: |
ZF 6S ODGB First Gear Ratio (FGR) 8.28:1, new ergonomic gear level and gear knob |
| Suspension: |
Semi elliptical multileaf shackle type |
| Cabin: |
All steel factory built day cab |
| Tyres: |
8.25 x 16 - 16 PR nylon ply - radial optional |
| Max Speed: |
71.4 kmph |
| Gradeability: |
41.18% |
| GVW: |
10900 kgs |
| Wheelbase: |
2850,
3250,
3970,
4200 |
| Loading span: |
5/6 cum tipper
14 ft
17.2 ft
19 ft |
|
 |

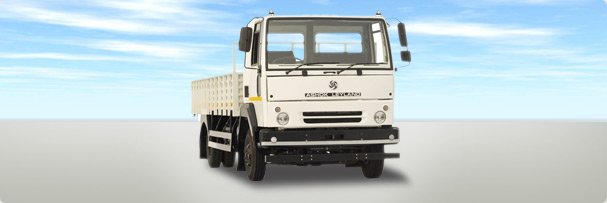

ECOMET 1012 SMART
|
| Applications: |
Parcel & courier, intercity logistics, agri perishables |
| Engine: |
HA4CTi 3N BS III with ECU |
| Power: |
120 hp @ 2400 rpm |
| Torque: |
392 nm @ 1600 rpm |
| Clutch: |
Single plate dry plate, 330 mm facia dia F510MCC lining |
| Transmission: |
ZF 5S ODGB First Gear Ratio (FGR) 5.96:1 |
| Suspension: |
Semi elliptical multileaf shackle type |
| Cabin: |
All steel factory built day cab |
| Tyres: |
8.25 x 16 - 16 PR nylon ply; radial optional |
| Max Speed: |
93.2 kmph |
| Gradeability: |
23.05% |
| GVW: |
10900 kgs |
| Wheelbase: |
3250,
3970,
4200, |
| Loading span: |
14 ft,
17.2 ft,
19 ft, |
|
-large.jpg) |

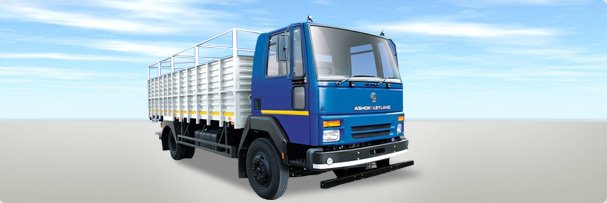

ECOMET 1212 STRONG
|
| Applications: |
Intracity distribution, market load, construction |
| Engine: |
HA4CTI3N BSIII with ECU |
| Power: |
120 hp @ 2400 rpm |
| Torque: |
392 nm @ 1600 rpm |
| Clutch: |
Single plate dry plate, 330 mm facing dia axial clutch, FS10MCC lining |
| Transmission: |
ZF6S ODGB First Gear Ratio (FGR) 8.28:1, new ergonomic gear lever and gear knob |
| Suspension: |
Semi elliptical multileaf shackle type |
| Cabin: |
All steel factory built day cab |
| Tyres: |
8.25 x 20 - 16PR nylon - ply |
| Max Speed: |
91.4 kmph |
| Gradeability: |
25.60% |
| GVW: |
12900 kgs |
| Wheelbase: |
2580,
3970,
4200,
4750 |
| Loading span: |
5/6 cum tipper,
17.2 ft,
19 ft,
22 ft |
|
 |

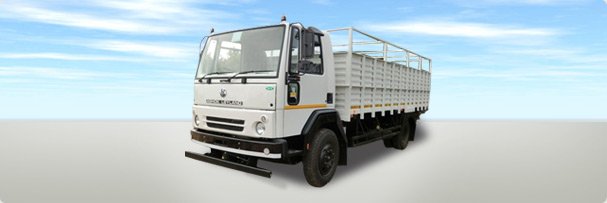

ECOMET 1212 SMART
|
| Applications: |
Intercity parcel & courier, agri persihables, market load |
| Engine: |
HA4CTI 3N BSIII with ECU |
| Power: |
120 hp @ 2400 rpm |
| Torque: |
392 nm @ 1600 rpm |
| Clutch: |
Single plate dry plate, 330 mm facing dia axial clutch, F510MCC lining |
| Transmission: |
ZF 5S ODGB First Gear Ratio (FGR) 5.96:1, new ergonomic gear lever and gear knob |
| Suspension: |
Semi elliptical multileaf shackle type |
| Cabin: |
All steel factory built day cab |
| Tyres: |
8.25 x 20 - 16 PR - nylon ply |
| Max Speed: |
90.4 kmph |
| Gradeability: |
19.80% |
| GVW: |
12900 kgs |
| Wheelbase: |
3970,
4200,
4750 |
| Loading span: |
17.2 ft,
19 ft,
22 ft |
|
| ecomet 1012 Strong |
ecomet 1012 Smart |
ecomet 1212 Strong |
ecomet 1212 Smart |
.jpg)
